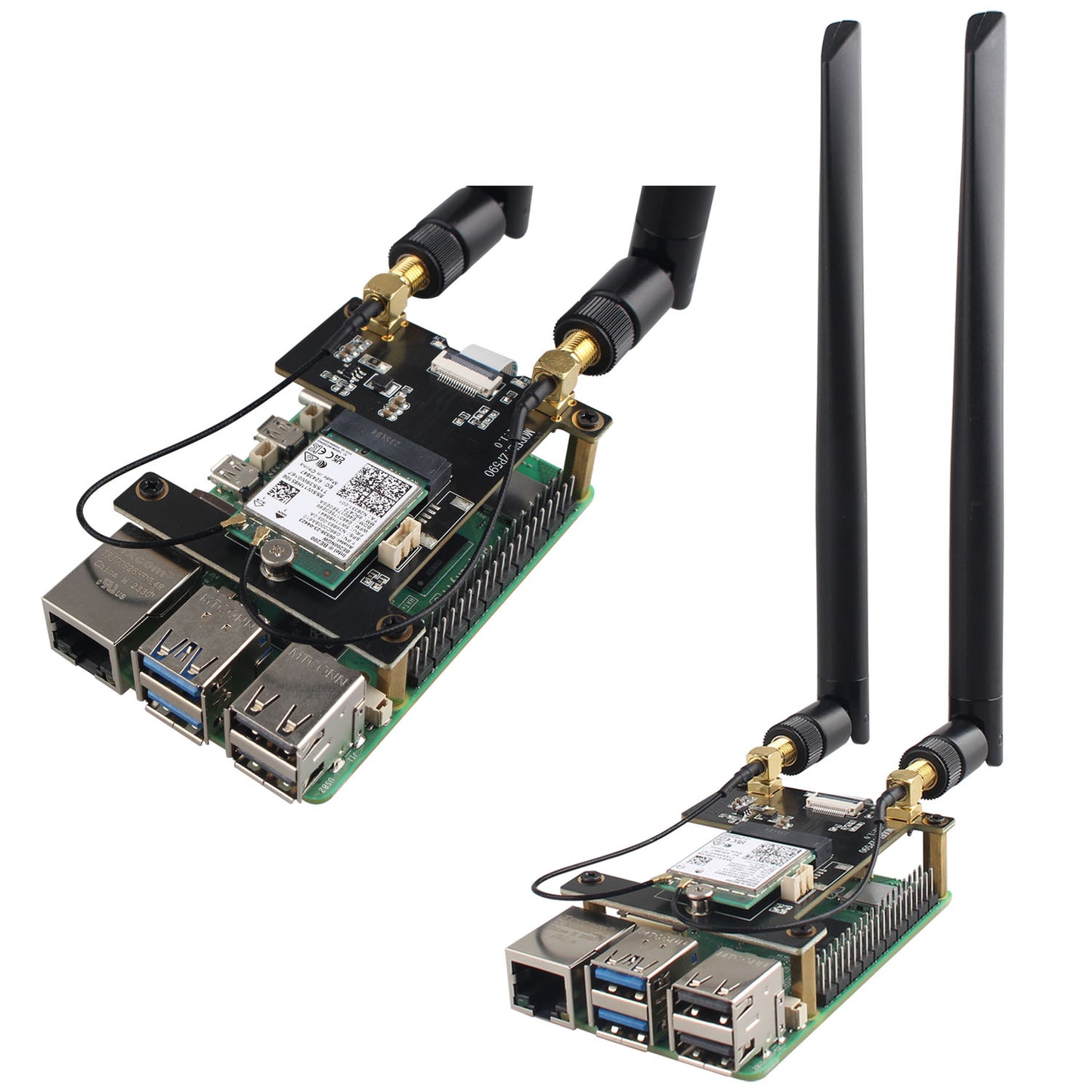

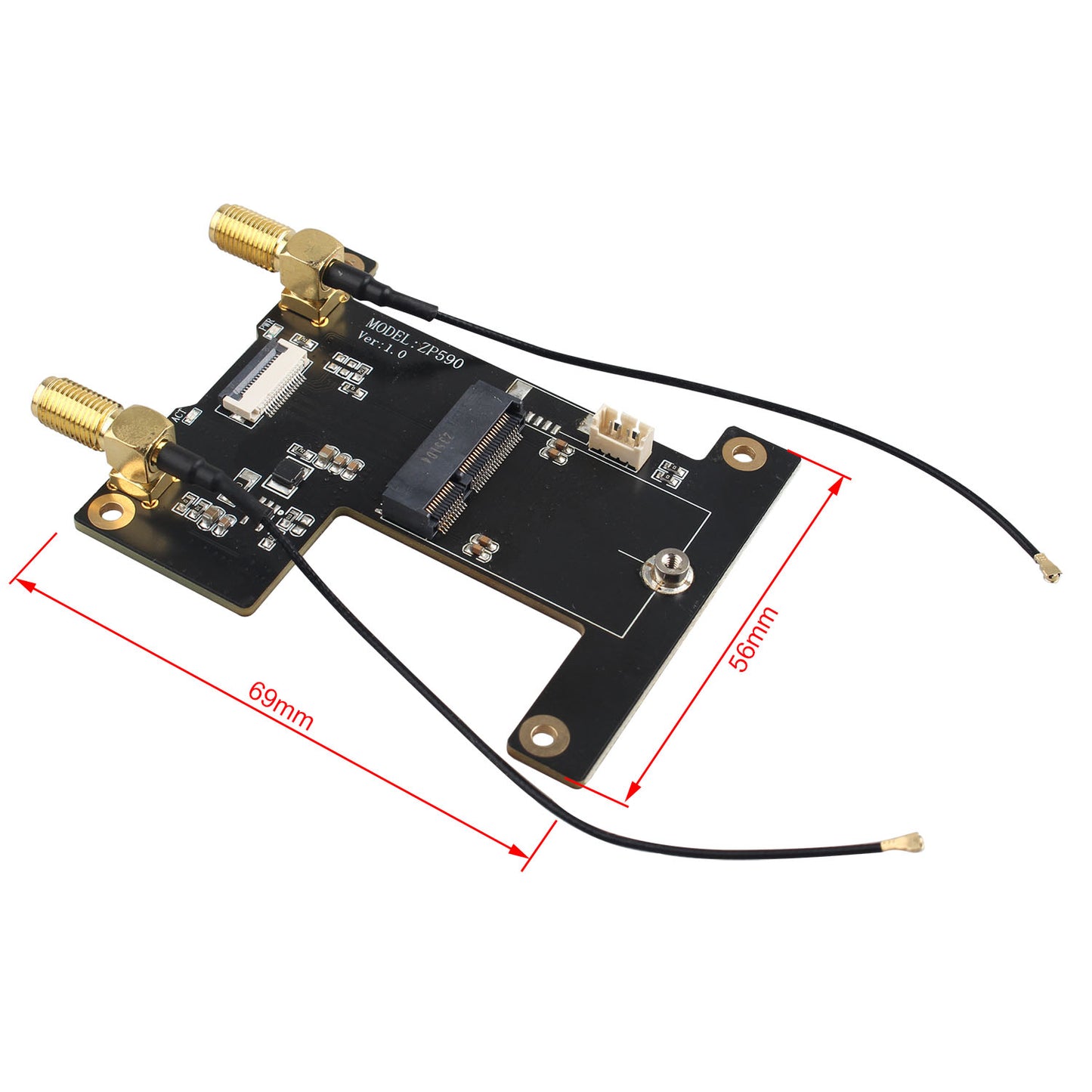

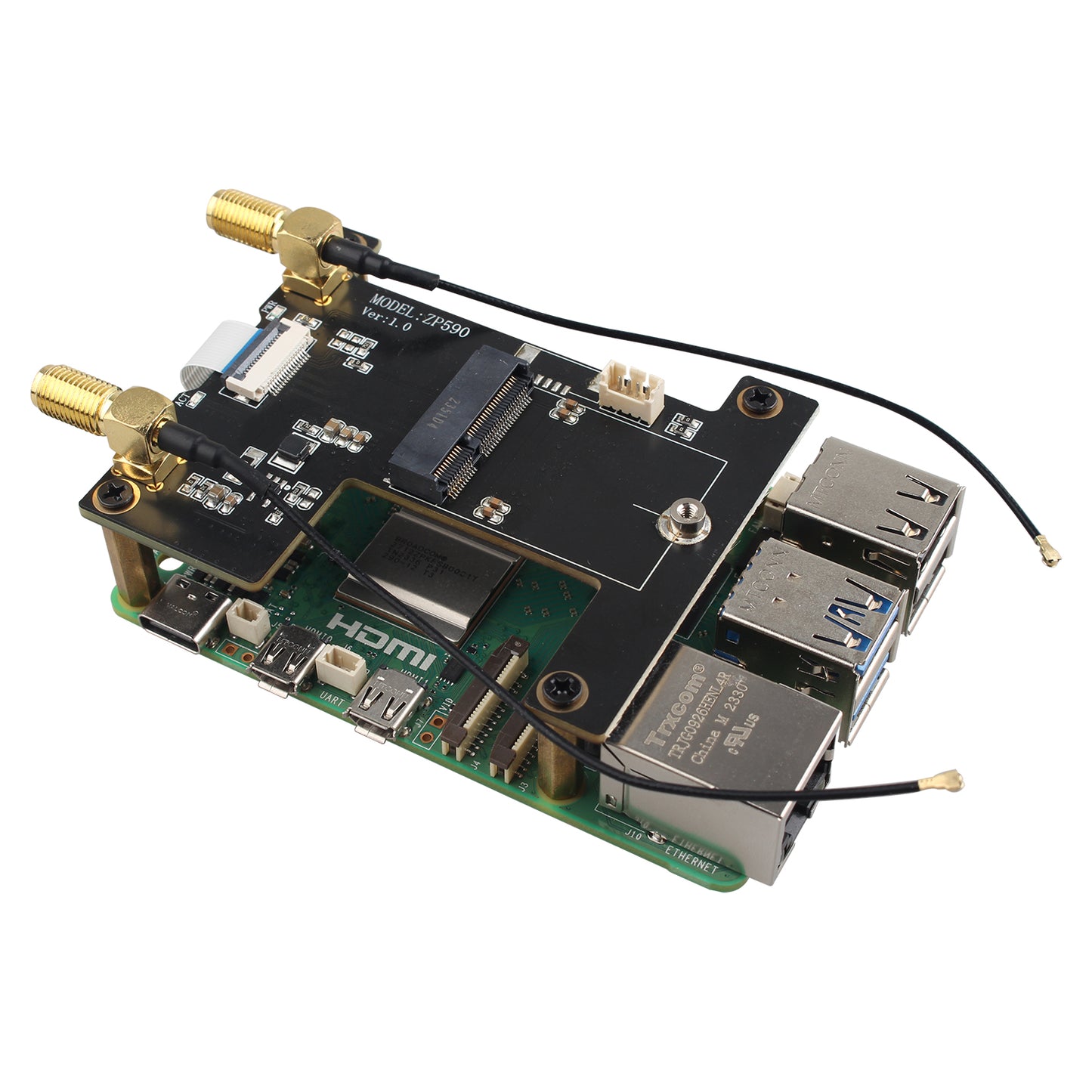

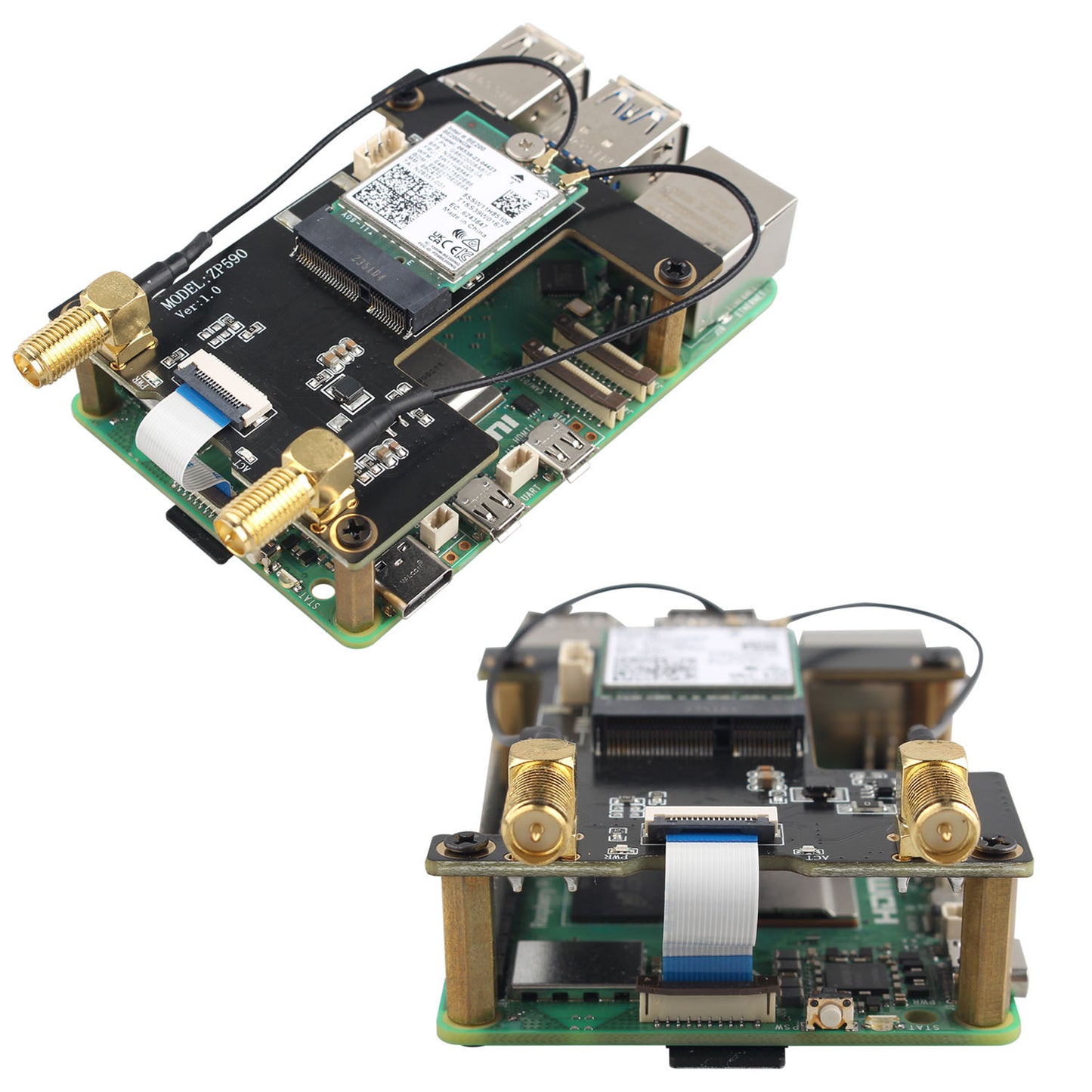

Supports PCle PCIE interface, specially designed for Raspberry Pi 5. Supports M.2 E-key interface and Wi-Fi7, also supporting BE200, AX210, AX200, MT7922 and intel 8265C.
Comes with on-board SMA connectors, suitable for installing WIFI antennas.
The PCIE to Wi-Fi7 Expansion Board is equipped with a bluetooth interface. To use the B-T function, you need to connect the bluetooth interface to the USB2.0 port of the Raspberry Pi 5, and then use it with driver and Profile.

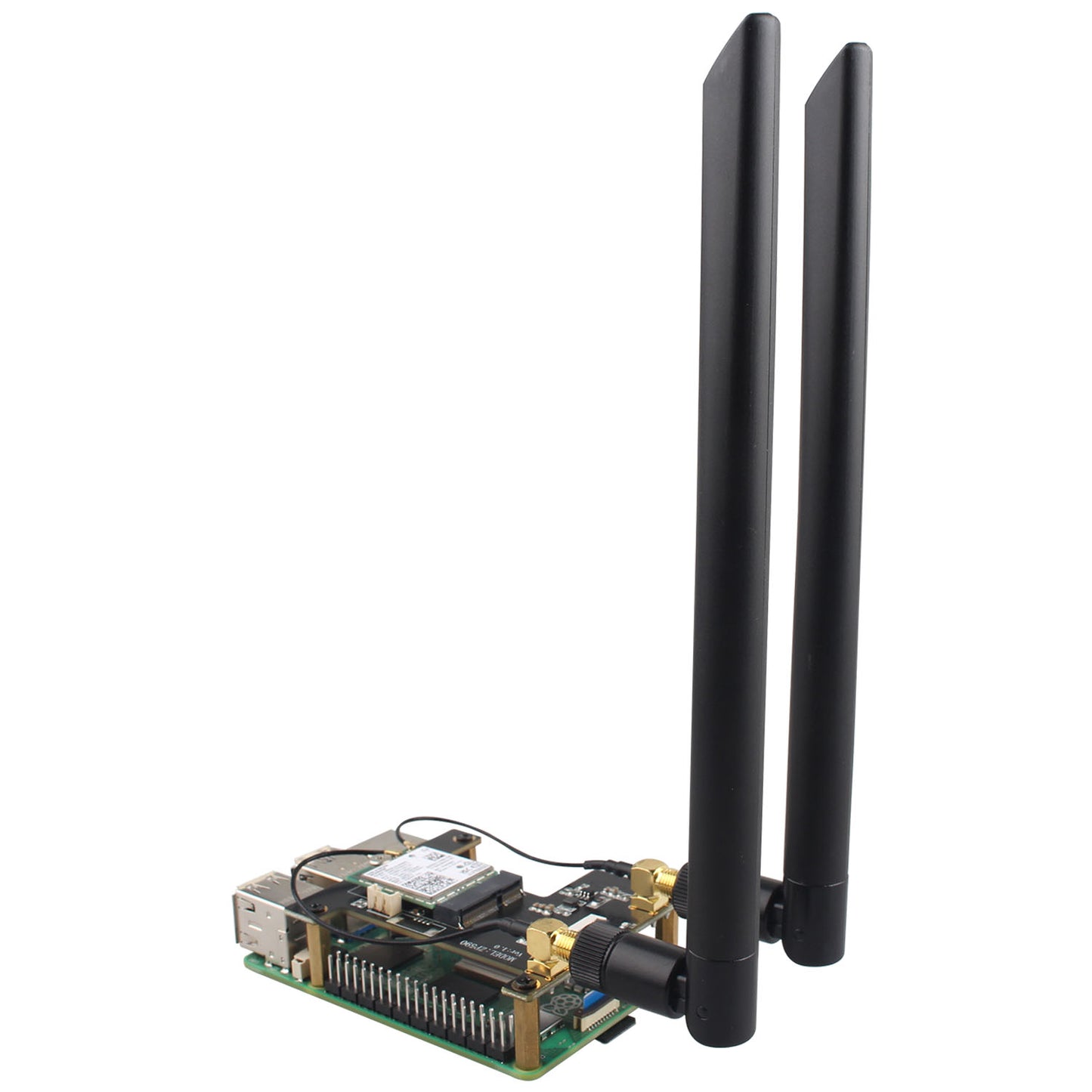

Practical design for multiple applications. You can use the board with WIFI module to enhance the WIFI signal of Raspberry Pi 5. It can also be used with TPU module for Image Recognition, Natural Language Processing, Enhancing Learning, etc.
The adapter board is compatible with Ubuntu system. Plug and play, no driver required. The official Raspberry Pi Raspbian system is not supported at present.

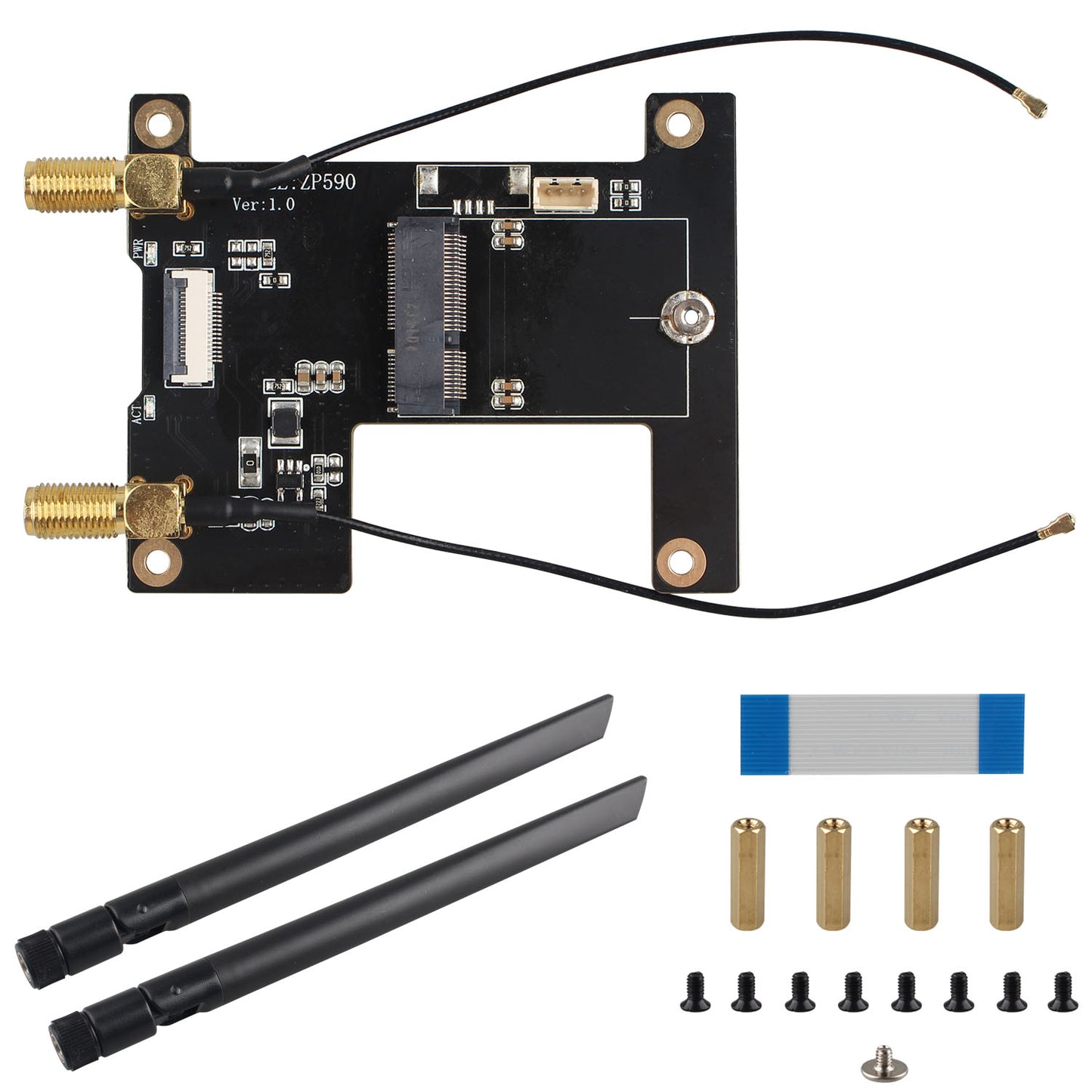

Packing List:
1 × PCIE to Wi-Fi7 Expansion Board
2 × WIFI Antenna
1 × PCIe FFC cable
1 × Screws Pack
Note: The Raspberry Pi 5 and WIFI module are not included.
