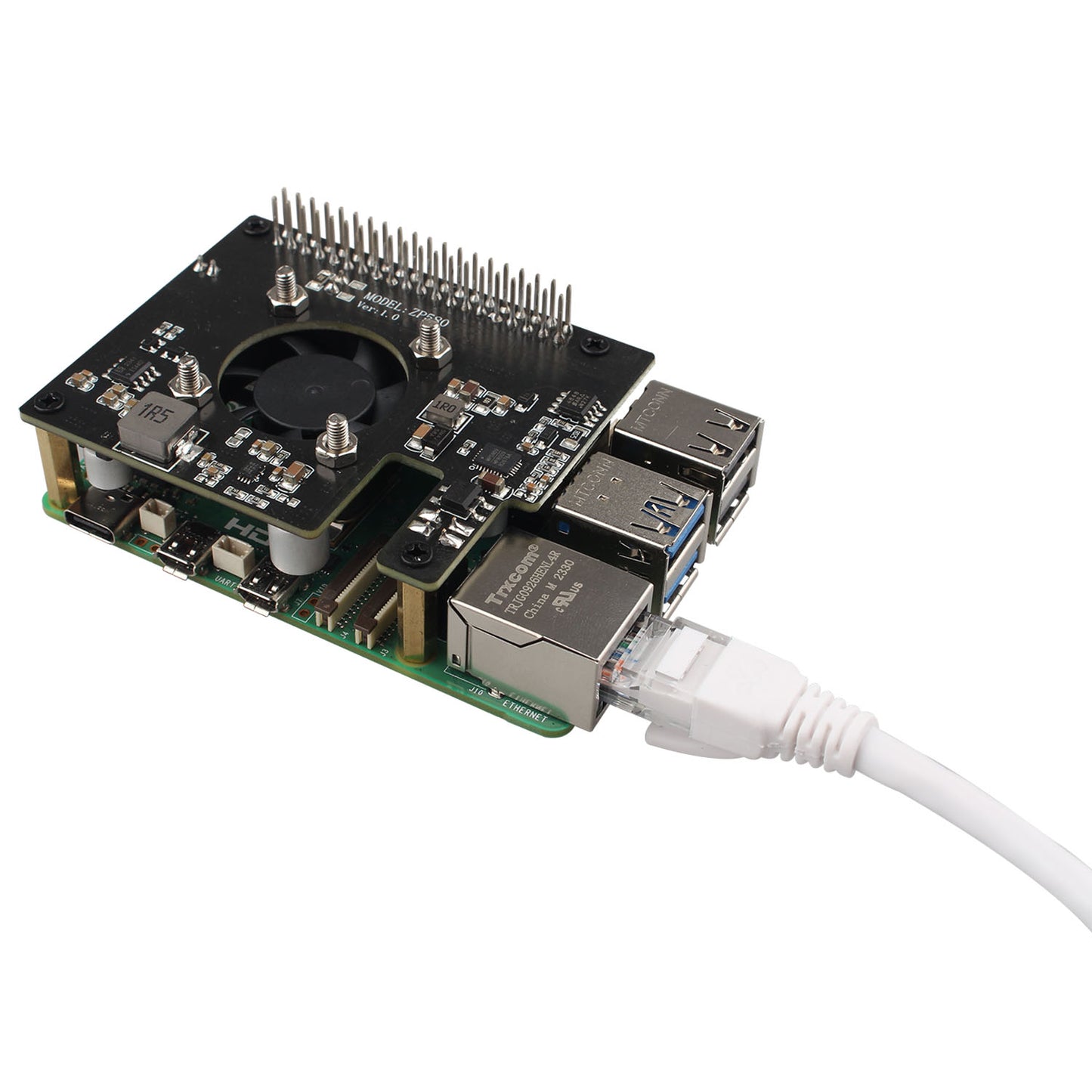

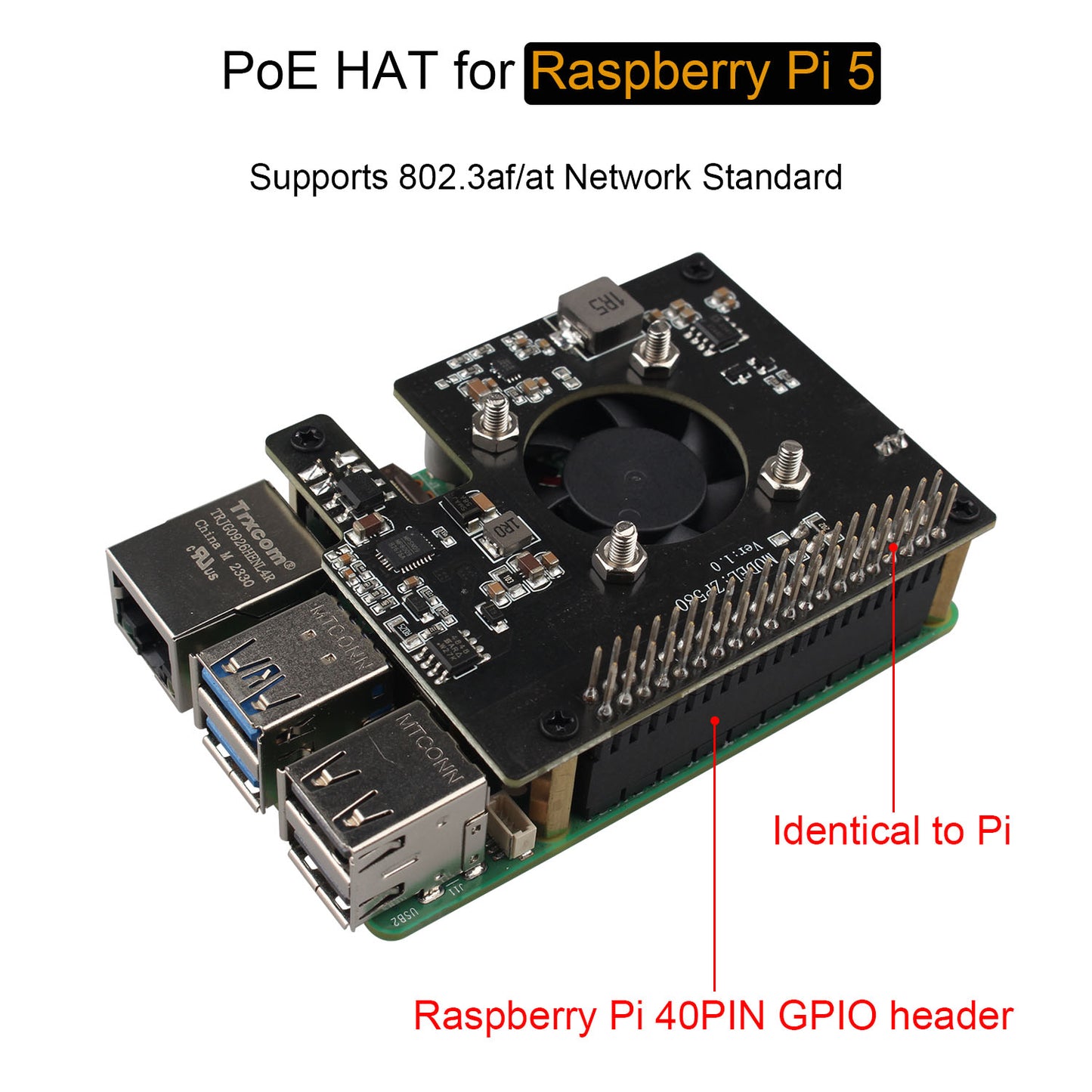

The PoE HAT board is an 802.3af/at-compliant Power Over Ethernet (POE) expansion board for the Raspberry Pi 5. With Standard Pi 40PIN GPIO stackable header, allows connecting other HATs.

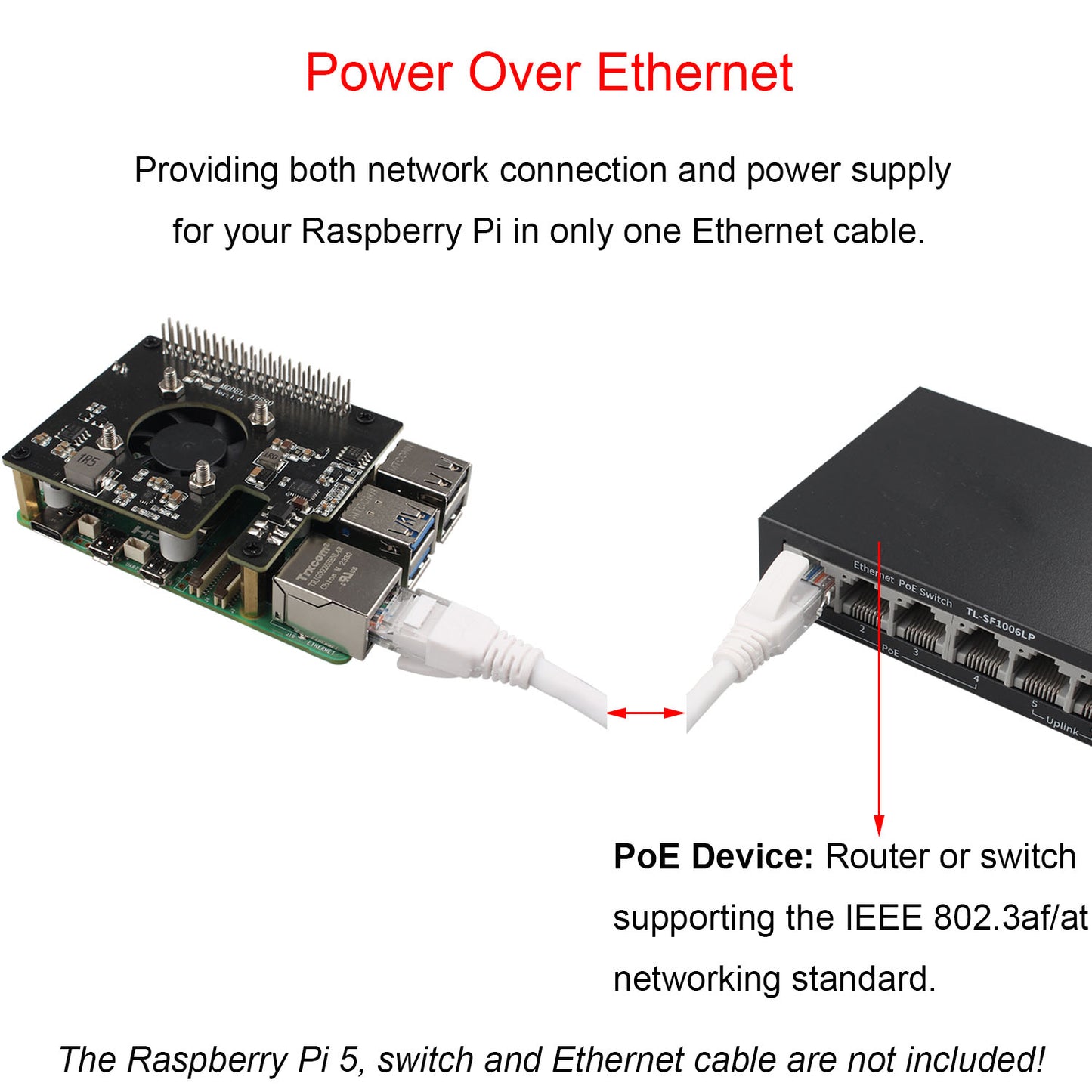

Suitable for use with a PoE router or switch that supports the IEEE 802.3af/at networking standard. Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

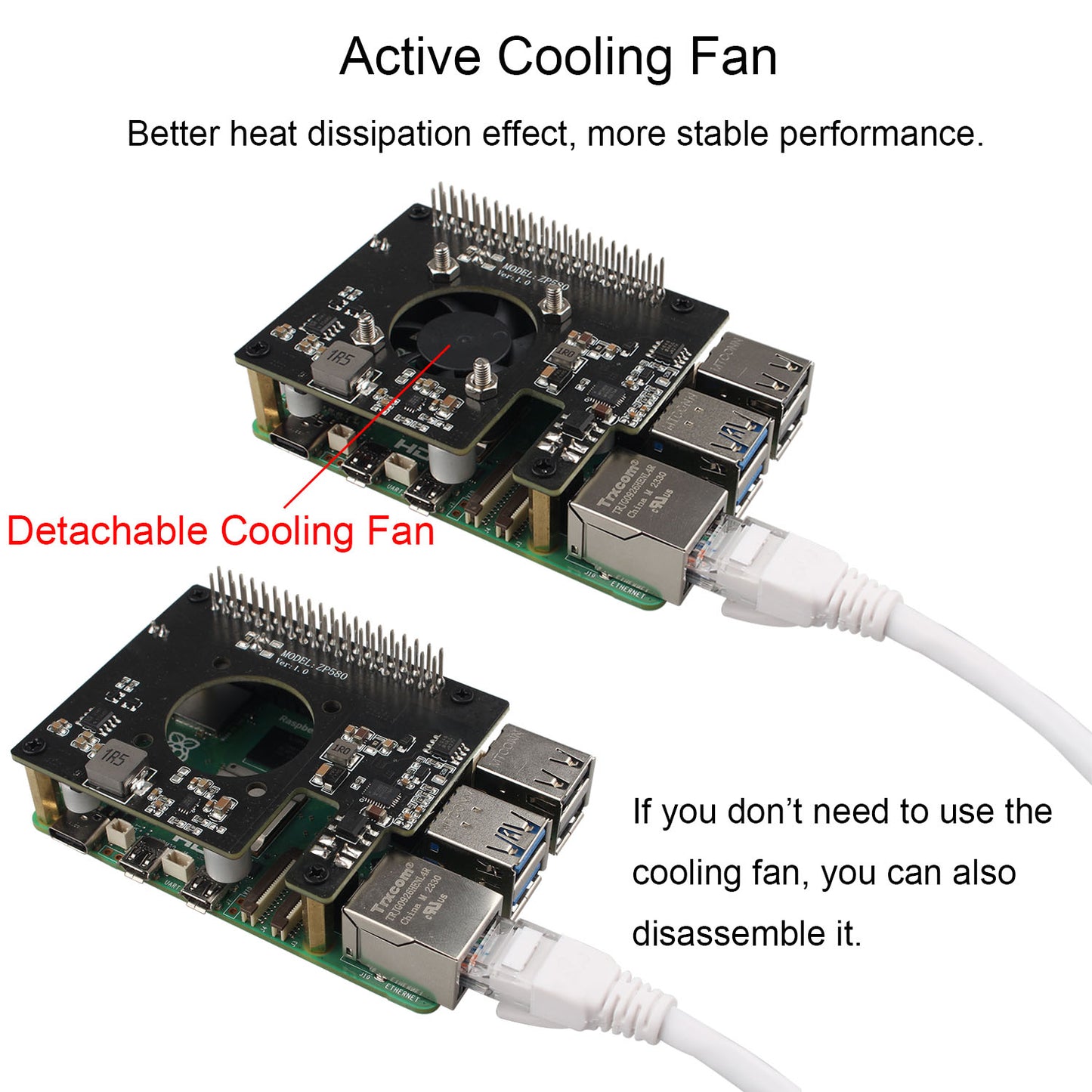

Equipped with an onboard active cooling fan for better heat dissipation effect and more stable operation performance. If you don’t need to use the cooling fan, you can also disassemble it.
Comes with onboard 5V & 12V header outputs. 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi.

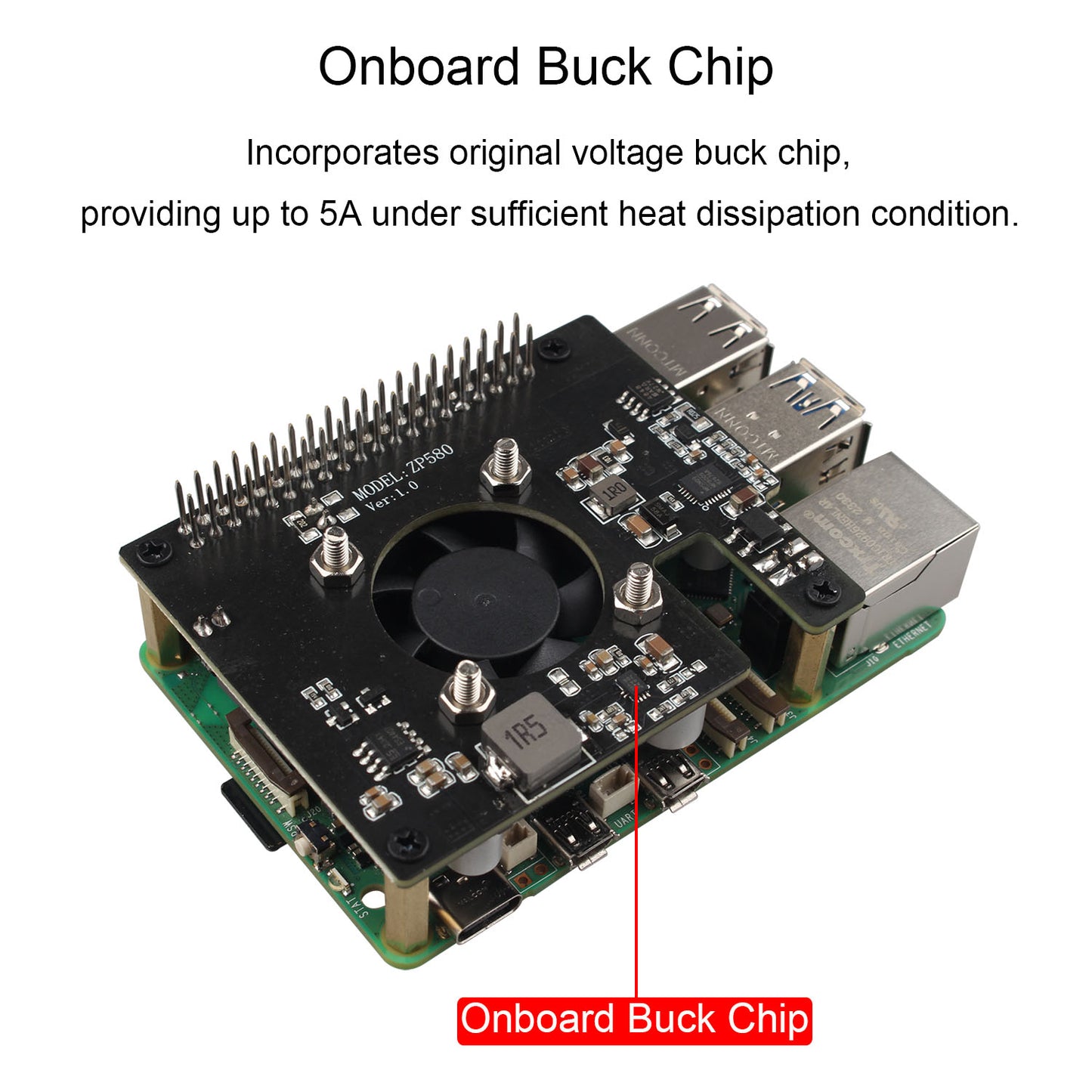

Onboard buck chip: Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition.
Specifications:
POE input voltage: 37V-57V DC input
POE - GPIO header: 5V 4.5A (MAX)
POE - 2P header: 12V 2A (MAX)
Network standard: Support IEEE 802.3af/at PoE

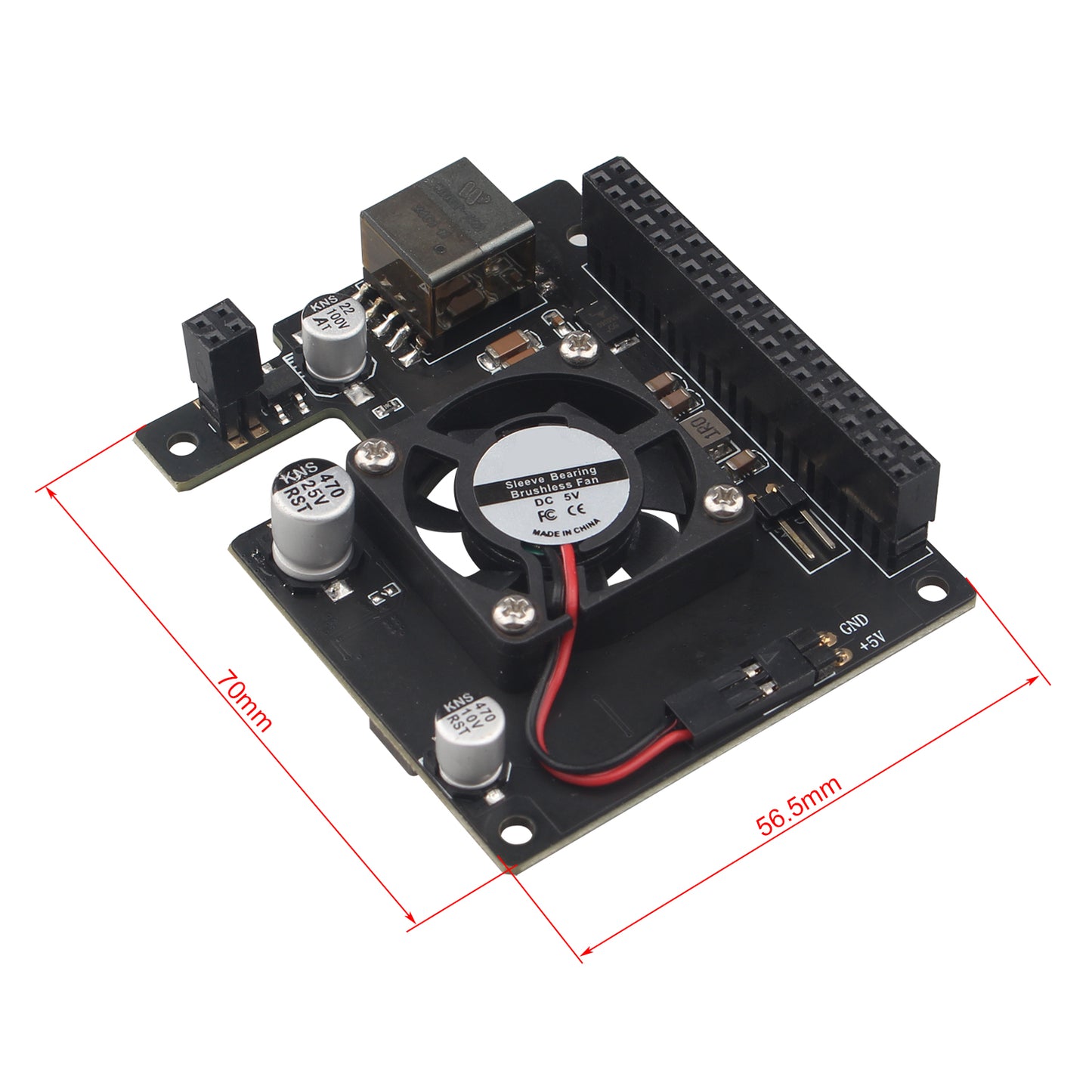

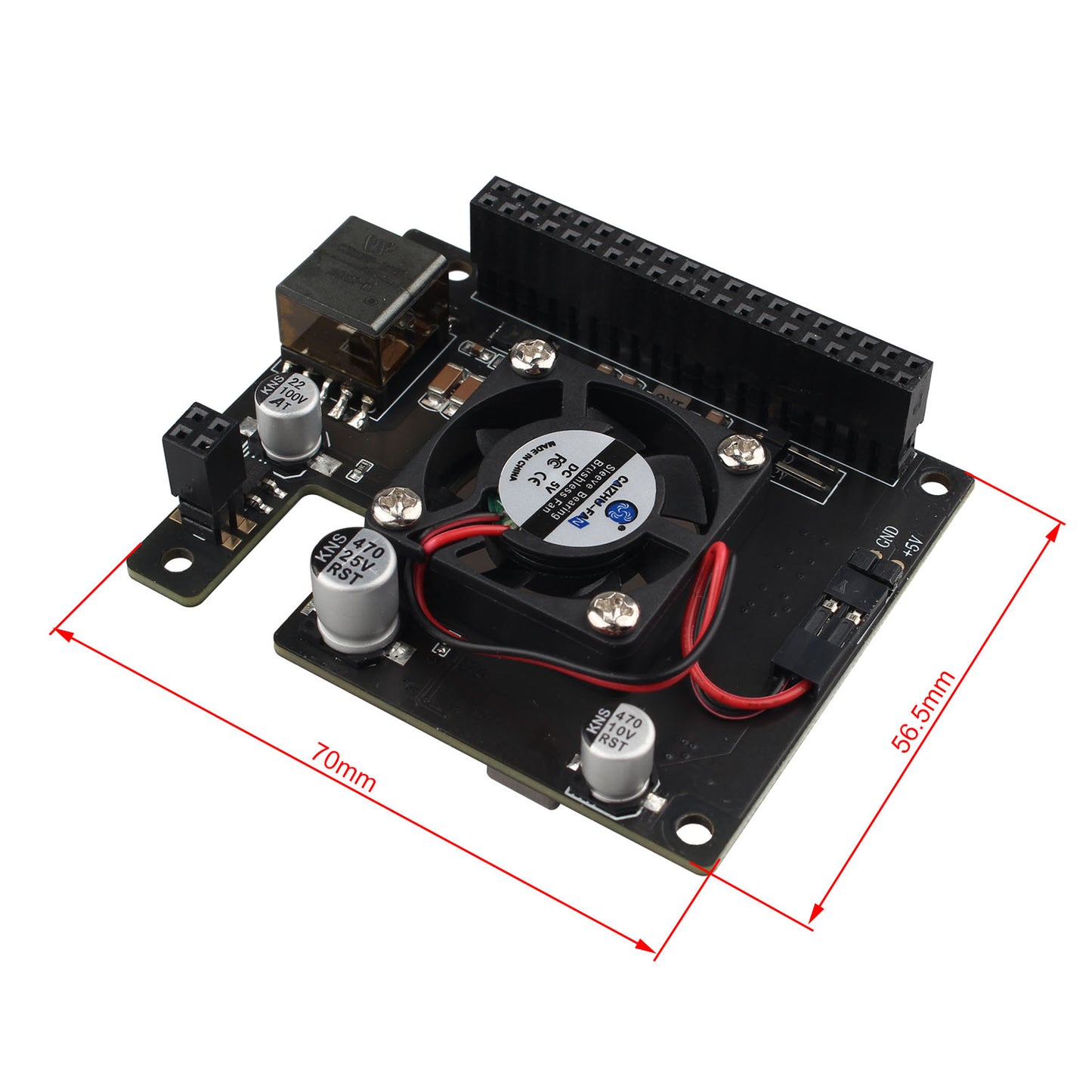

Dimensions: 56.5 × 70.0mm
Weight: 38.7g

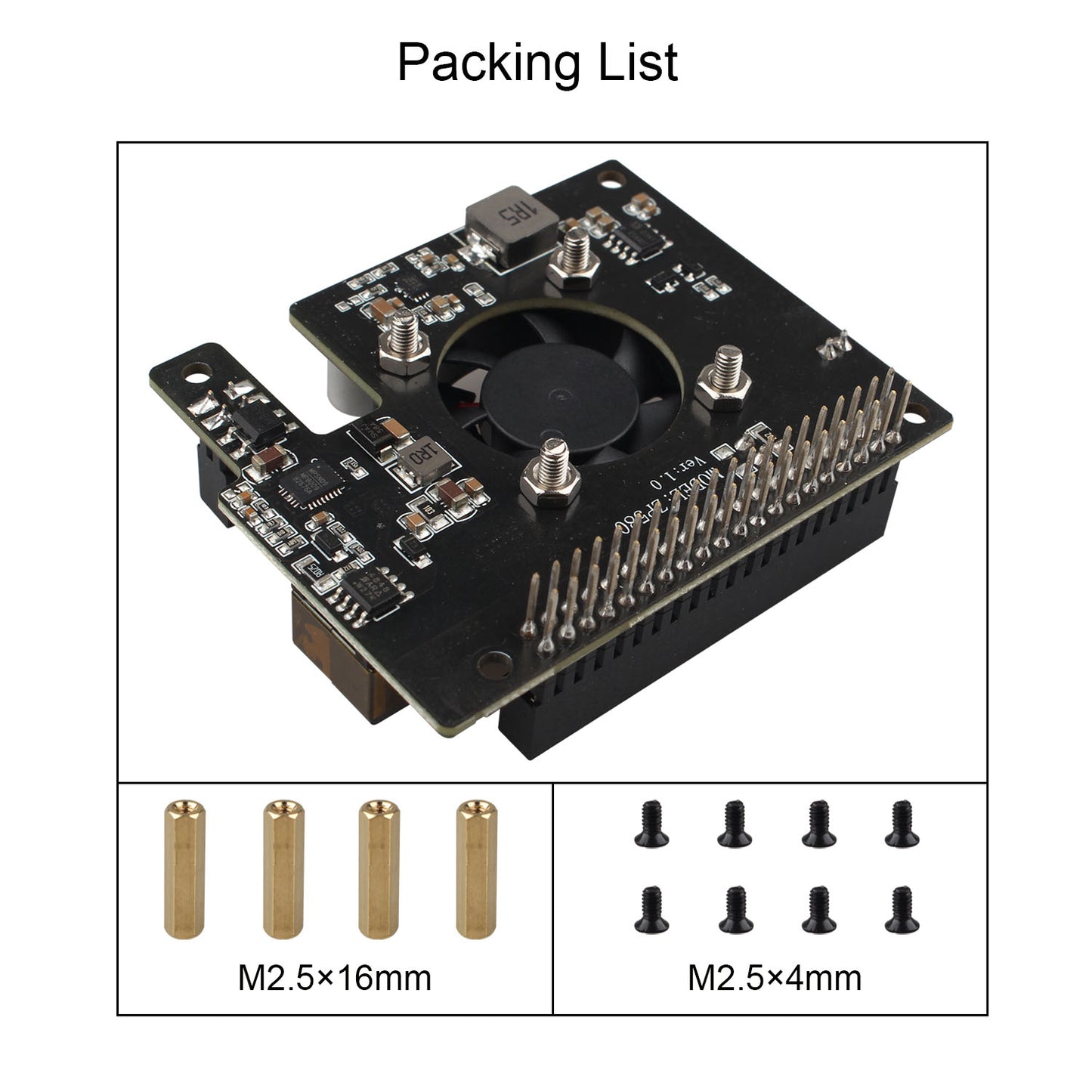

Packing List:
1 x PoE HAT Board
4 x M2.5x16mm Spacers
8 x M2.5x4mm Screws
Note: The Raspberry Pi 5, switch and Ethernet cable are not included in the package.
