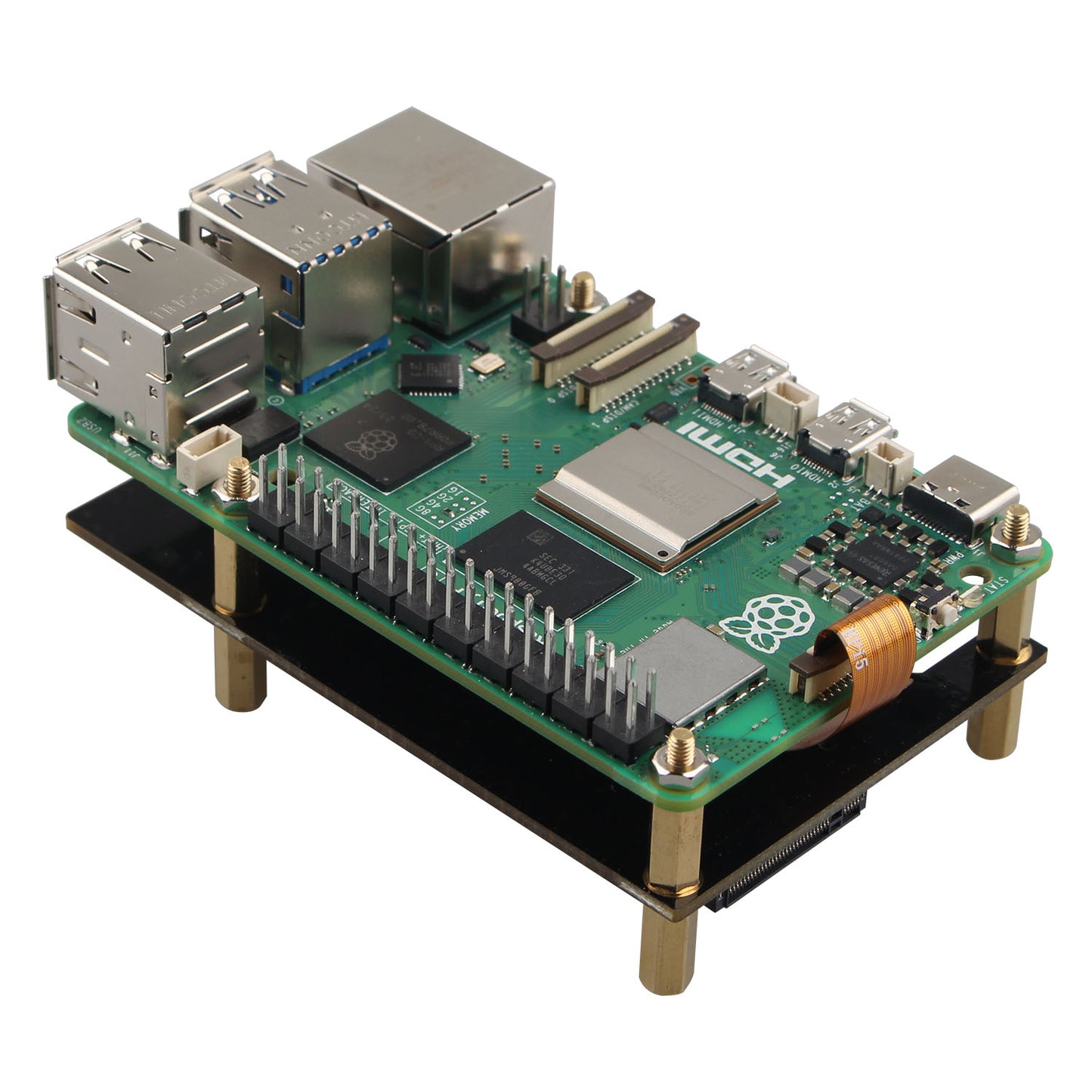

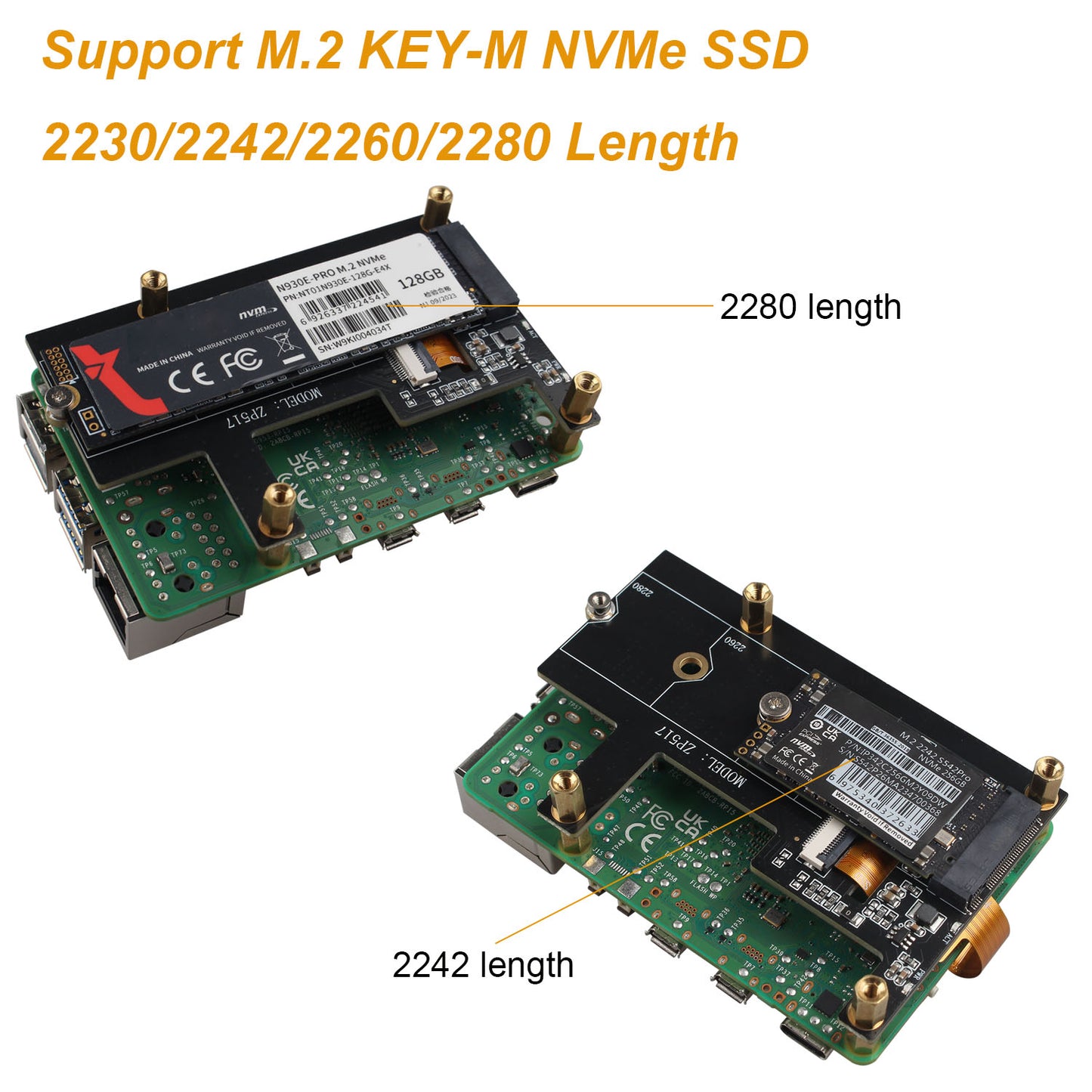

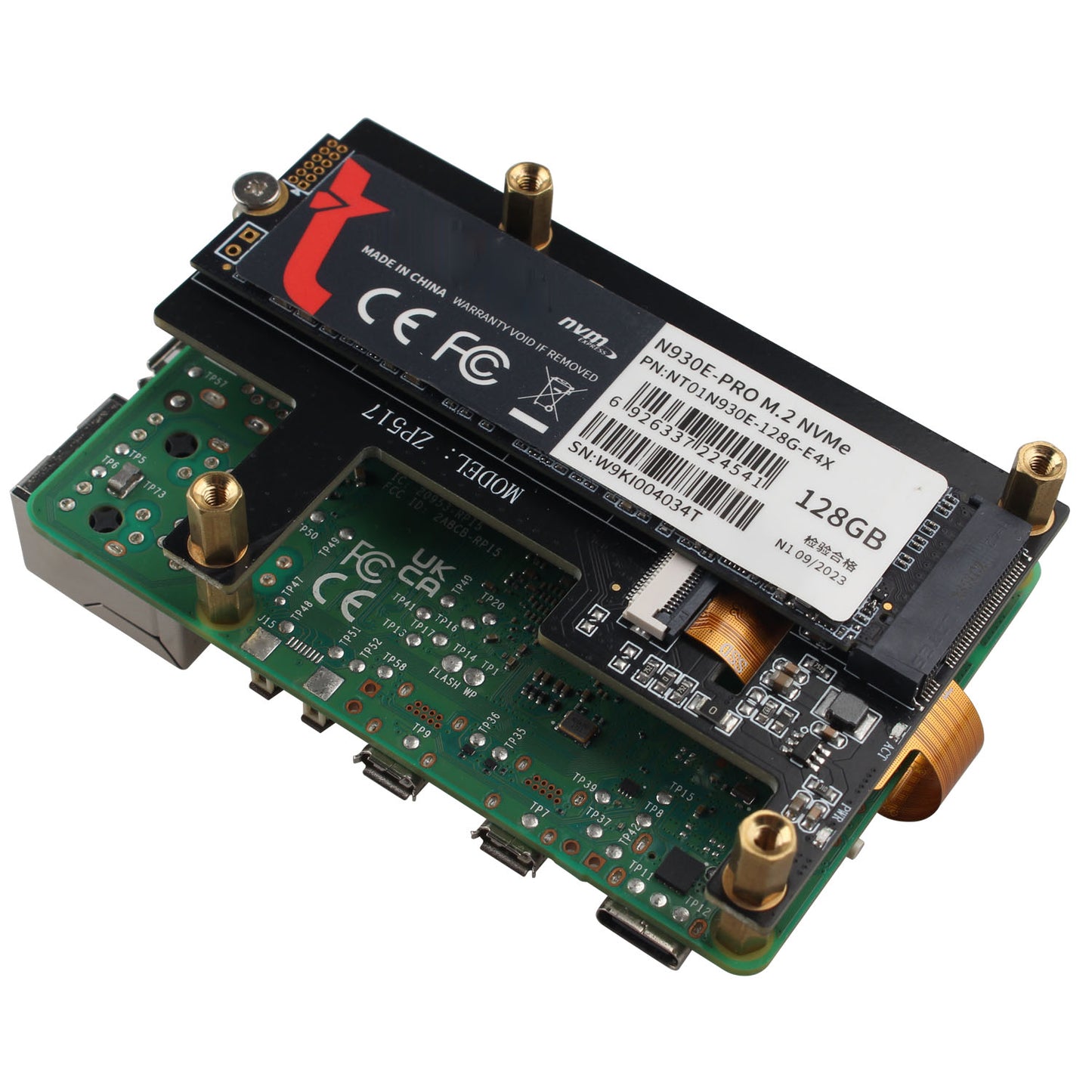

ZDE ZP517B M.2 NVMe to PCIe Adapter Board is designed for the latest Raspberry Pi 5, which supports the installation of M.2 KEY-M NVMe SSD in 2230/2242/2260/2280 length.
How to Power: Power the ZP517B shield directly from the PCIe FPC ribbon.
Equipped with PWR LED Indicator and ACT Status LED Indicator, practical design for real-time monitoring of the working status for more stable operation.
ZP517B PCIe Peripheral Board is only compatible with Raspberry Pi 5 8GB / 4GB / 2GB / 1GB computer (NOT include Raspberry Pi 5).
The ZP517B hardware has no limit on NVMe SSD capacity, which depends on the Raspberry Pi OS.
We don’t recommend to use NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility.

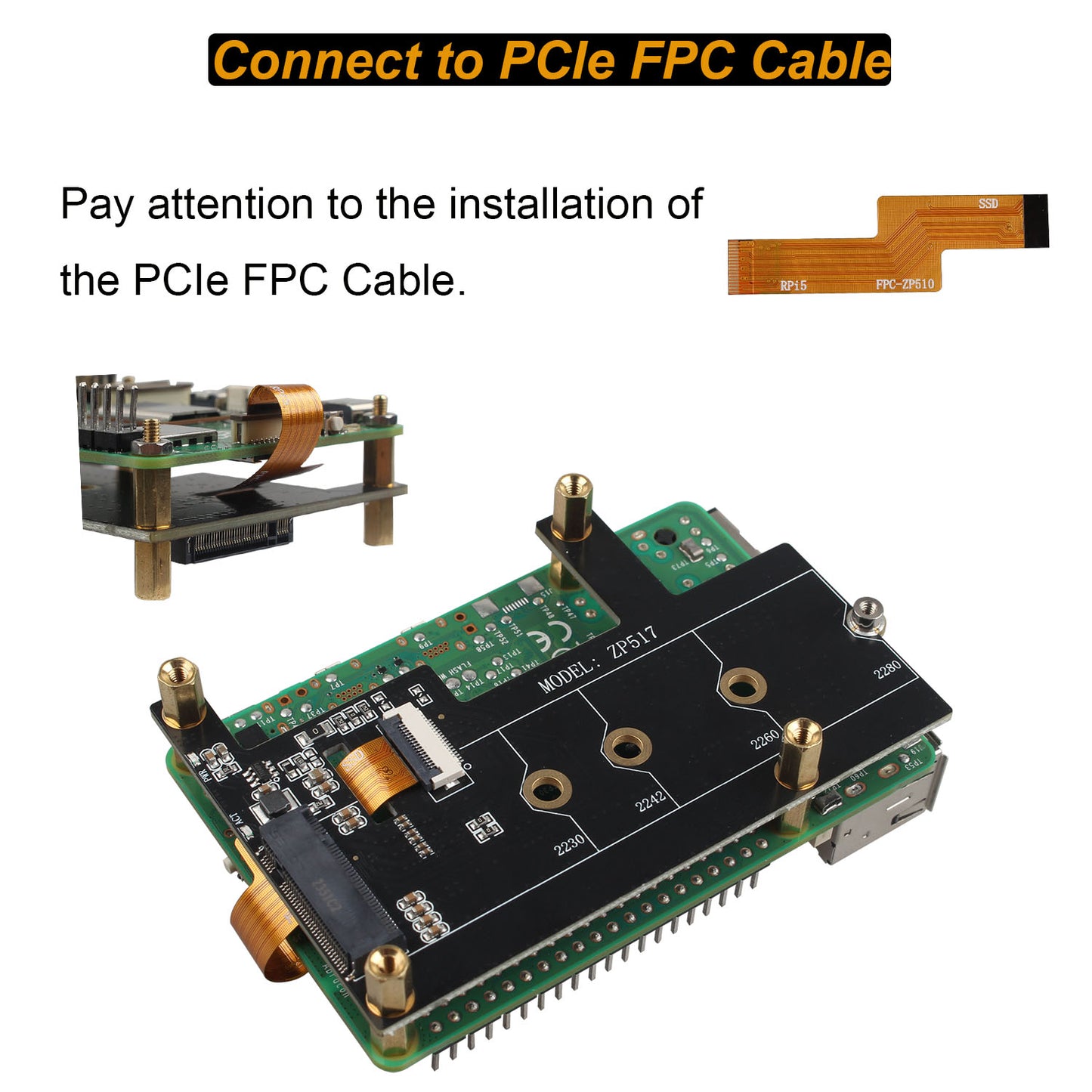

Note: Make sure that the FPC cable is fully inserted in right direction. The PCIe Peripheral Board is compatible with M.2 KEY-M NVMe SSDs, not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices.

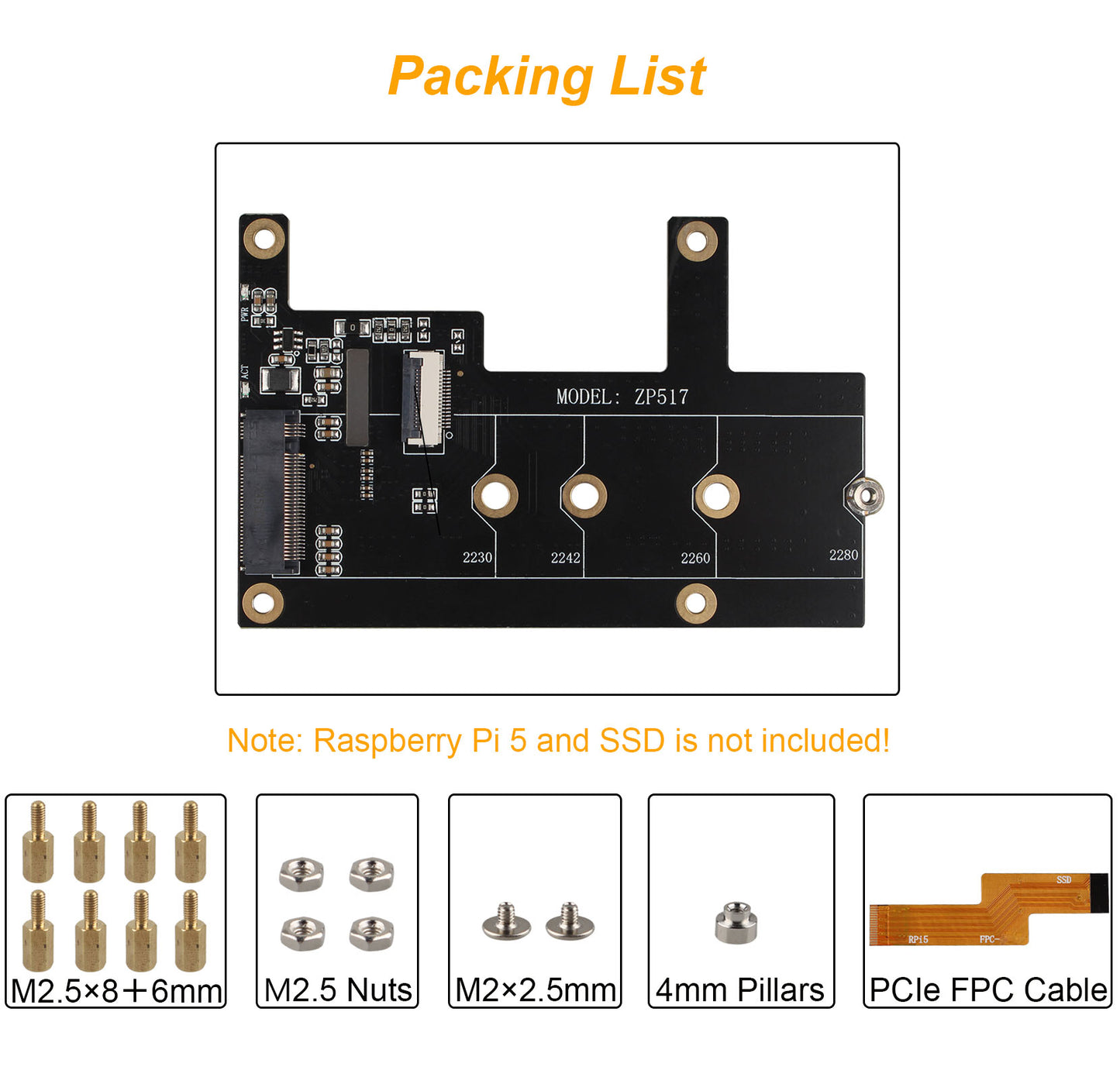

Packing List:
1 x ZP517B PCIe Peripheral Board
1 x PCIe FPC Cable
1 x Screws Pack Accessories
Note: Raspberry Pi 5 and M.2 NVME SSD is not included.
