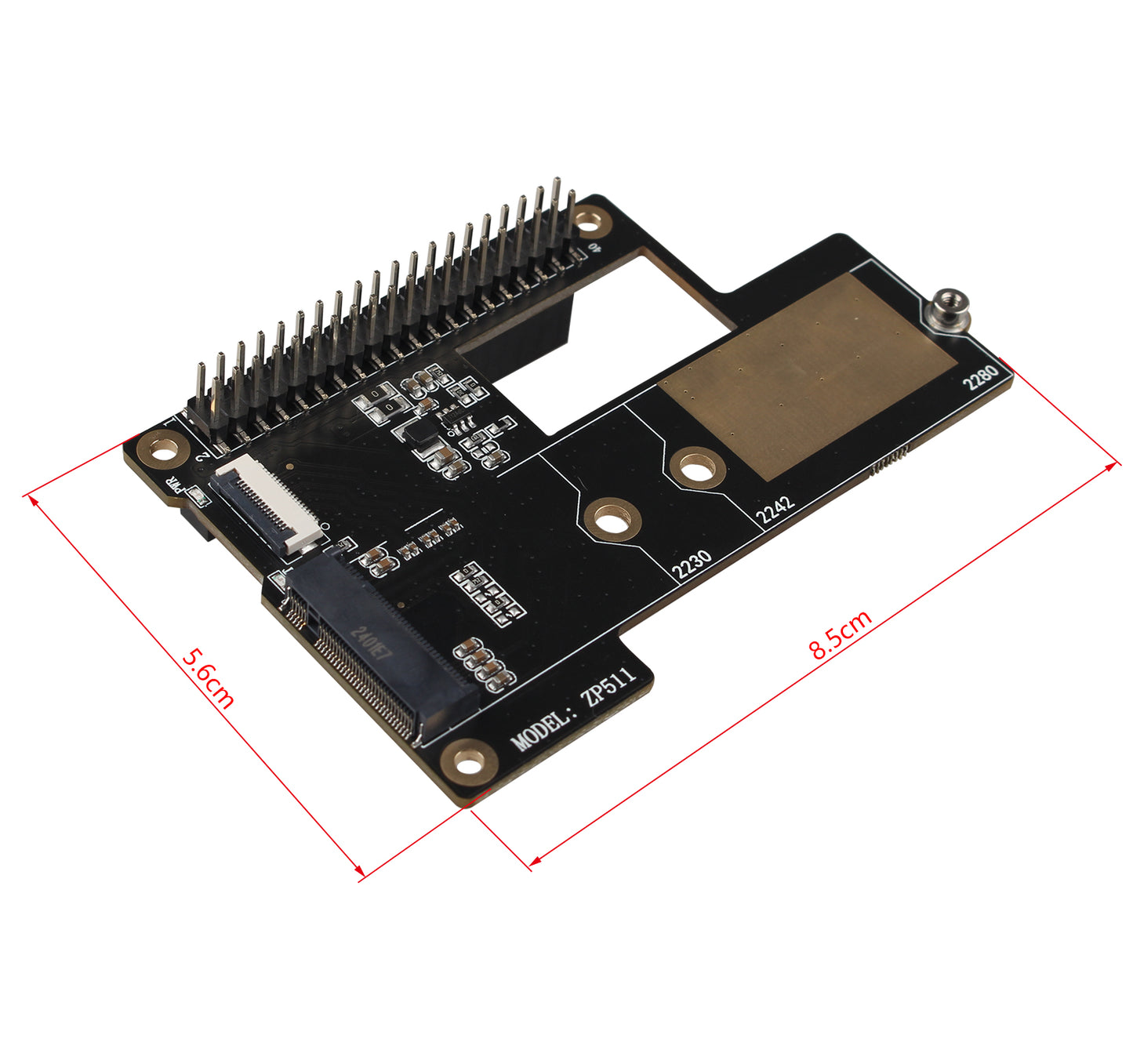

The ZP511 board is an M.2 Key-M NVMe SSD PIP PCIe Peripheral Board for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilize the M.2 NVME SSDs for ultra-fast booting and fast data transmission.
ZDE ZP511 M.2 NVMe to PCIe Adapter Board supports the installation of M.2 KEY-M NVMe SSD in 2230/2242/2280 length.
Supports installation of official active coolers for heat dissipation. Reserved airflow vent for the cooling fan, better cooling effect for Raspberry Pi 5 and SSD.
Equipped with PWR LED Indicator and ACT Status LED Indicator, practical design for real-time monitoring of the working status for more stable operation.
ZP511 PCIe Peripheral Board is only compatible with Raspberry Pi 5 8GB / 4GB computer (NOT include Raspberry Pi 5).
The ZP511 hardware has no limit on NVMe SSD capacity, which depends on the Raspberry Pi OS.
We don’t recommend to use NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility.
How to Power:
Power the ZP511 shield directly from the PCIe FPC ribbon.
With 40pin header, the board can also automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.
Packing List:
1 x ZP511 PCIe to M.2 NVMe SSD Adapter Board
3 x M2.5x16mm Spacers
6 x M2.5x4mm Screws
2 x M2x2.5mm Screws (to fix SSD)
1 x 4mm Pillar (to fix SSD)
1 x PCIe FPC cable
Note: The Raspberry Pi 5 and M.2 NVMe SSD is not included in the packing list.
